The Westbury Brook Valley Railway [WBVR] runs from the Junction at Grange Court  for 4.4 miles to Shapridge Mill. The WBVR opened in 1851 but until 1904 only handled goods traffic. In 1904 the Great Western Railway introduced a 'basic' passenger service with a steam railcar serving halts along the WBVR. The steam railcar was subsequently replaced by an auto-coach (push-pull train) latterly powered by a 14XX. Passenger services were withdrawn in 1957. Despite the introduction of a passenger service the WBVR remained goods orientated with general goods traffic handled until 1964 and quarry traffic continuing to 1981. The WBVR is inspired by the Great Western Railway's Forest of Dean and Forest of Dean Central branches. The layout is set in the 1950's



Four track plans were developed and the fourth was used. The design process is shown in Shapridge Mill - design process



Video



Panoramas

The halt

Industries

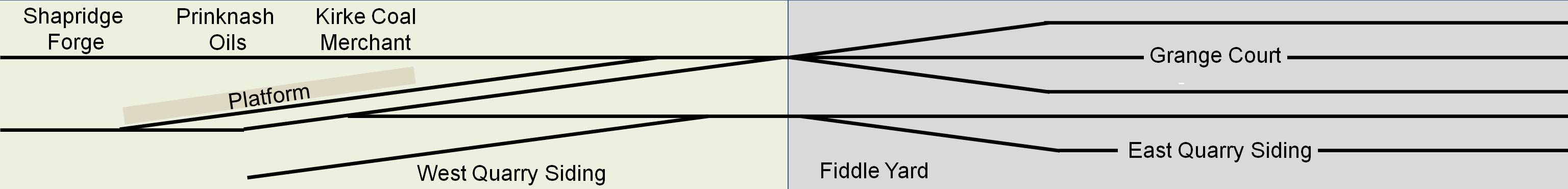

Track plan

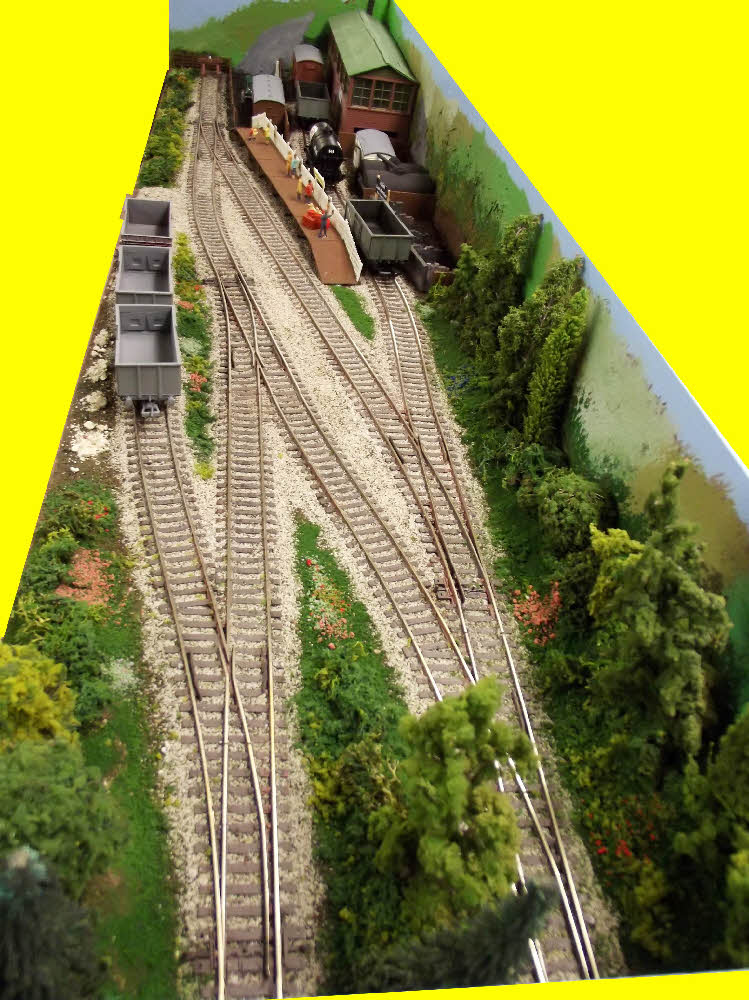

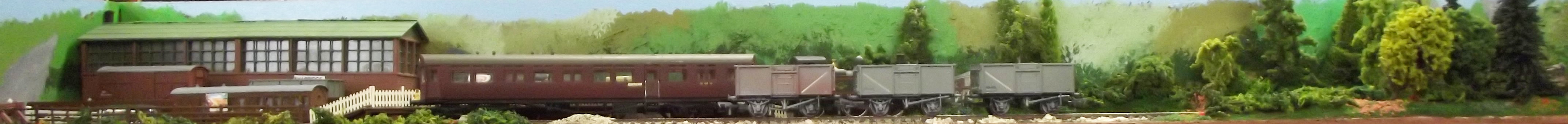

Panoramas of the layout




The
Halt

The limited facilities at Shapridge Mill
Technically the Halt is a Platform as its
staffed and parcels traffic is handelled

The platform is unusually busy with
passengers and parcels awaiting
the auto train

The auto train has arrived from Gloucester
The auto coach's parcels section is
stopped by the parcels



Industries on the layout

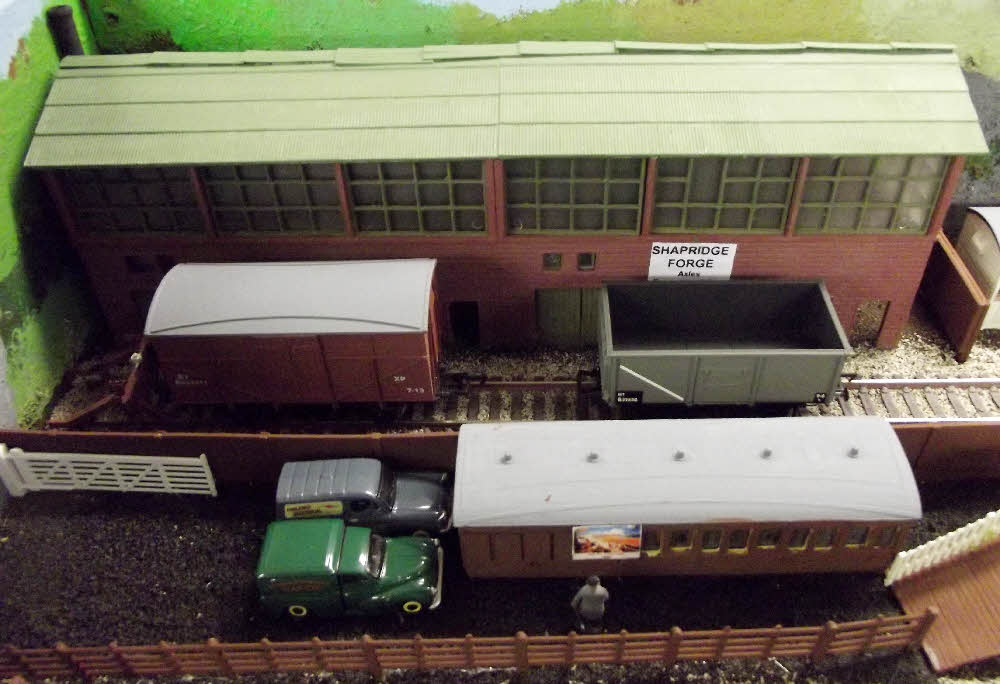

Shapridge Forge produces materials for the
rail industry such as axles, expansion joints,

turnout fittings (check rails, ties, frogs, & rods)
and fasteners.

It is inspired by a forge in nearby Lydney.

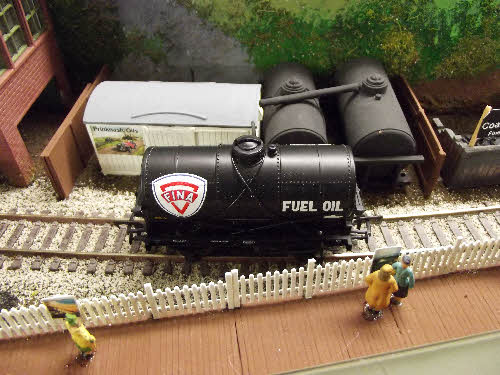

Prinknash Oils is inspired by a short lived
oil siding at Coleford (Gloucestershire).

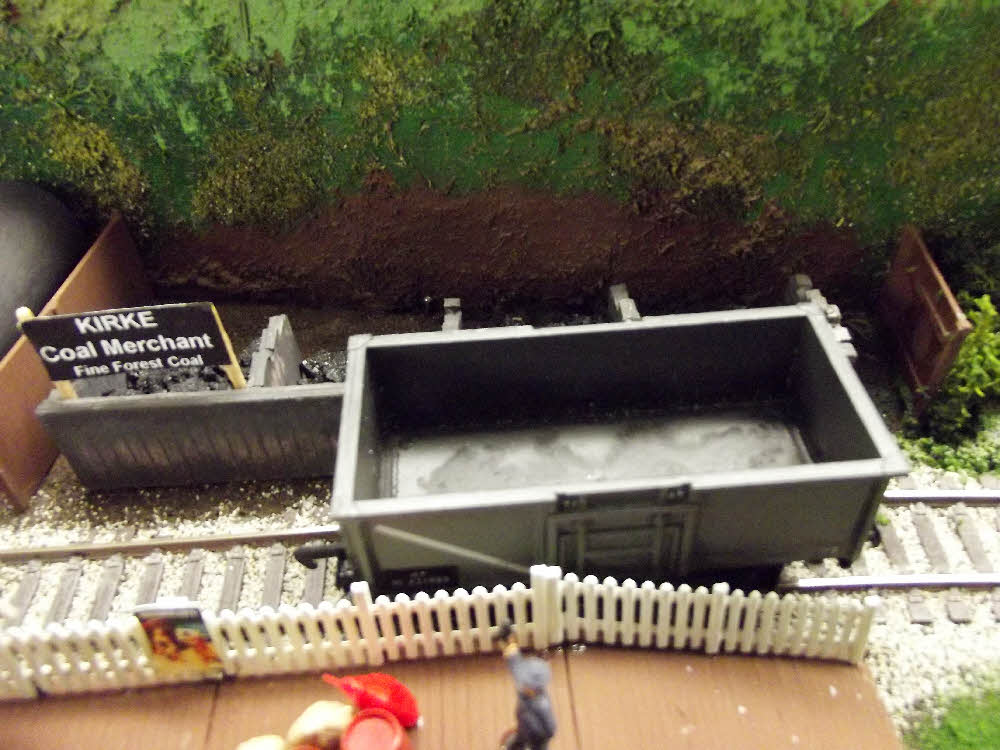

Kirke Coal Merchant, Fine Forest Coal

Coal was extensively handelled by the

railways into the the 1960's

Fine Forest Coal was the marketing slogan
of the nearby Forest of Dean Collieries.

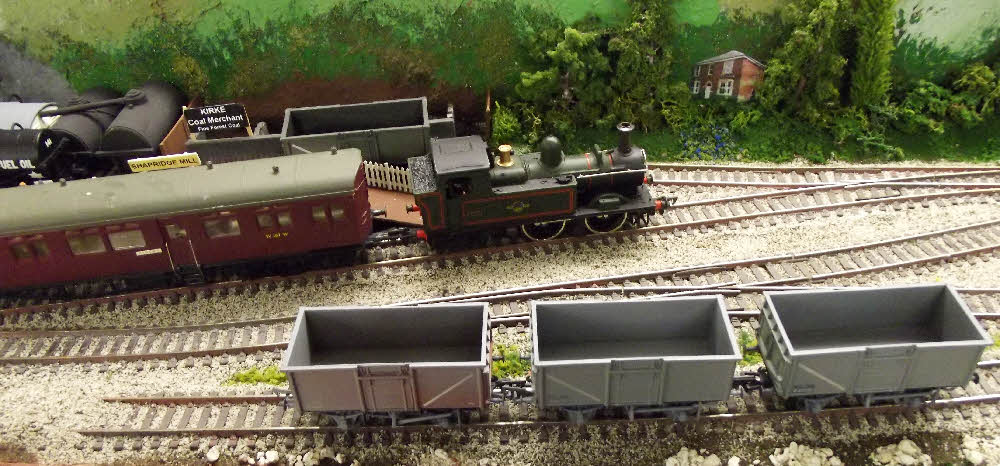

West Quarry, the quarry is of the
layout but the quarry's limestone
is loaded at this siding

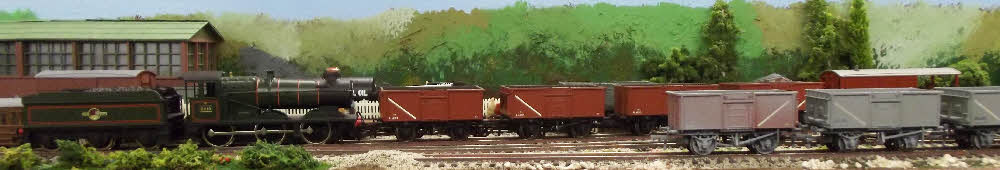

A white lie - East Quarry is a siding in the fiddle yard.
The photo shows a Collett Goods loco arriving from Grange Court before proceeding to the Quarry.
